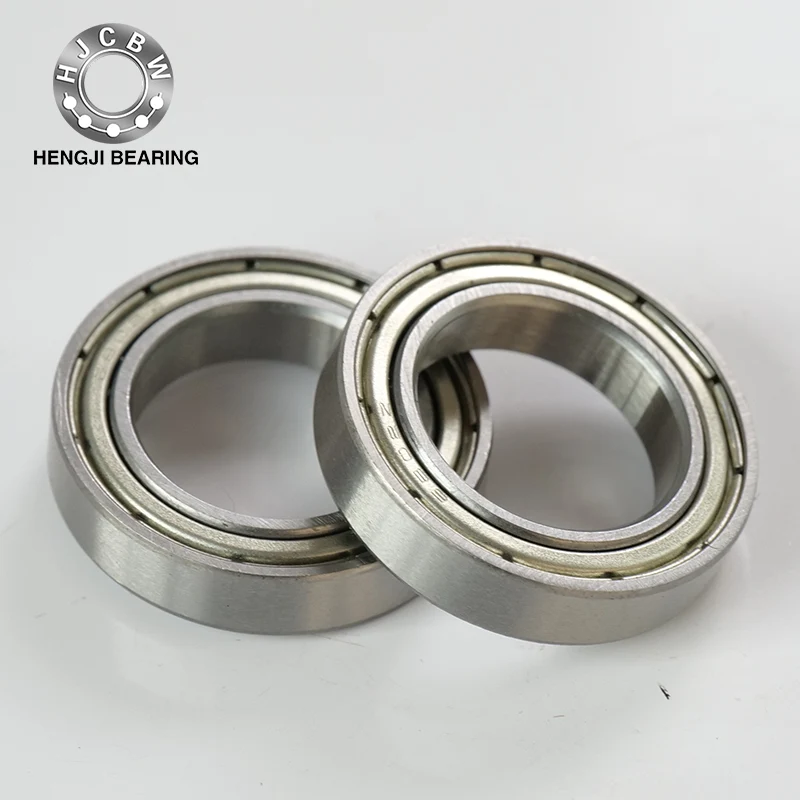

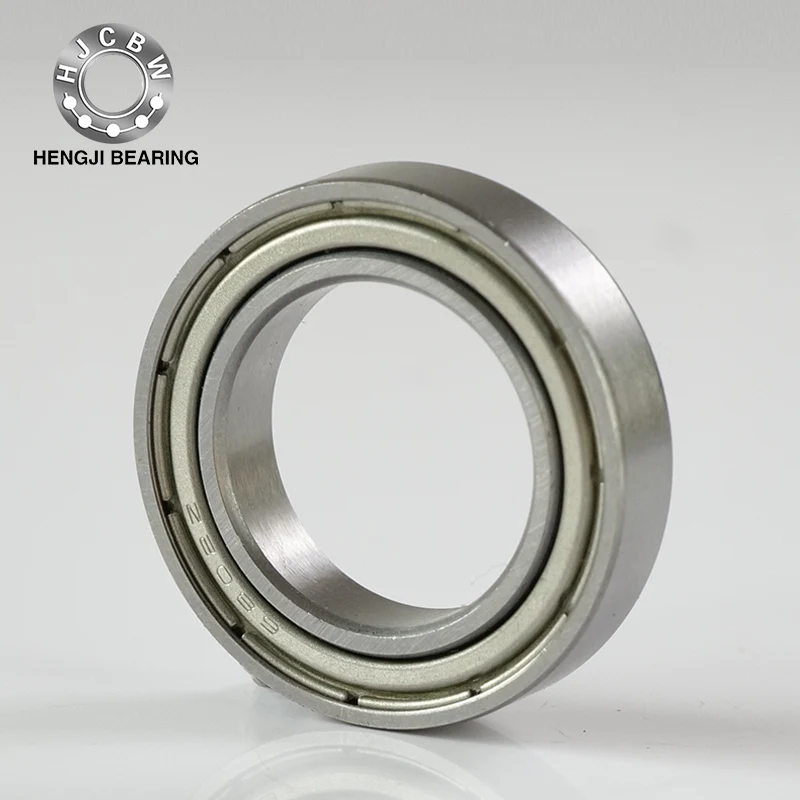

6802Z Thin Section Bearings

Our Hengji Bearing Company's 6802Z thin section bearings are suitable for equipment with compact space (such as micro motors). The 6802Z thin section bearings have a single-sided metal dust cover, which can effectively prevent dust. Please feel free to place an order.

Send Inquiry

Product Description

The 6802Z thin section bearings are widely used in many fields due to their compact design, high precision and low friction characteristics. By optimizing materials, lubrication and design, their performance can be further improved to meet higher requirements. They are widely used in precision instruments, small motors, office equipment and household appliances.

Parameter

Bearing No			6802Z
Outer Diameter	Inner Diameter(mm inch)		15	0.5906
	Outer Diameter(mm inch)		24	0.9449
	Width(B)	Open(mm inch)	5	0.1969
		Closed(mm inch)	5	0.1969
	Chamfer(mm inch)		0.3	0.012
Rated Load	Dynamic (Cr N)		2070
	Static(CorN)		1250
Weight(kg)			0.007

Main features

Thin-wall design: thin wall thickness, suitable for occasions with limited space.

Dust protection: with dust cover (Z type), effectively prevent dust and impurities from entering, and extend service life.

High precision: suitable for high-precision equipment to ensure stable operation.

Multiple materials: Inner and outer rings and rolling elements are usually made of high-carbon chromium steel or stainless steel to meet the needs of different environments.

Application areas

Precision instruments: such as optical equipment and measuring instruments.

Small motors: such as micro motors and stepper motors.

Office equipment: such as printers and scanners.

Household appliances: such as fans and vacuum cleaners.

Why choose us

1. Product advantages: efficient dust prevention, maintenance-free, wide range of use, ultra-high speed and high temperature resistance, high speed and extremely high speed operation

2. Material: We use bearing steel, also known as (chrome steel), steel model: GCr15, which is a special steel for international bearing industry standards.

3. Advantages of bearing steel material: effectively improve the torque performance of bearings, enhance stability, high hardness, low noise, and long life

4. Bearings are widely used in mechanical equipment, which can reduce the friction of mechanical parts, reduce energy consumption, and improve work efficiency and working life

5. We can provide customized services

6. Application range: washing machines, air conditioners, massagers, laser printers, banknote counters, car wipers, condensing fans, power tools, vacuum cleaners, precision instruments, toy models
