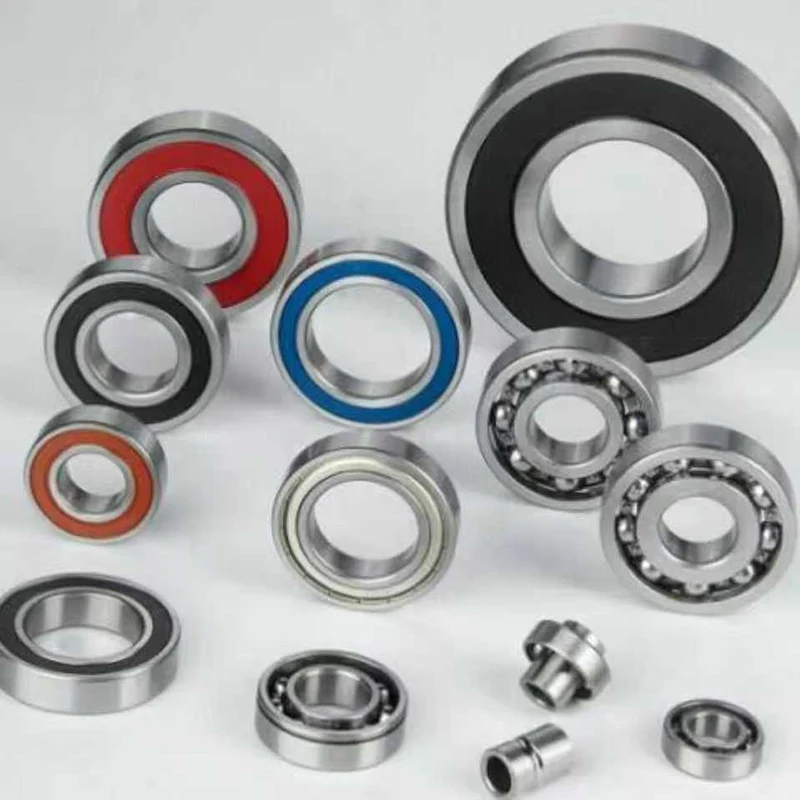

When does a Non-standard Bearing make more sense than a catalog part?

2025-11-10

I run into the same moment on many projects: the drawing is almost done, the sample rig is running, and a standard part nearly fits but not quite. That is when a carefully specified Non-standard Bearing stops being a luxury and becomes the shortest path to launch. Over time, and after several smooth builds with partners like HENGJI BEARING, I learned how to make the custom route predictable, cost-aware, and fast enough for real deadlines.

Which day-to-day problems usually push me toward a non-standard choice?

I need a thinner section or a shoulder height that clears a housing rib without reworking the mold.
Noise limits are strict and the standard seal drags too much at my target RPM.
Corrosion or wash-down kills catalog steel, but full ceramic is overkill for budget.
Axial preload needs to be set at the factory so my team avoids fiddly shims on the line.
I must combine a flange, a nonstandard chamfer, and a special grease to pass endurance tests.

Which design levers move cost the most and how do I trade them?

When I plan a custom, I start with the few levers that dominate price and lead time. Getting these right keeps everything else reasonable.

Design lever	Typical options	Impact I actually see
Ring geometry	Thin-section, flanged OD, snap-ring groove, custom shoulder	Machining time rises quickly with deep grooves; flanges add one setup but often save housing cost
Rolling elements	Steel, ceramic hybrid, full ceramic	Hybrid cuts heat and noise at high RPM; full ceramic is niche and pricey but unbeatable in corrosives
Seal type	ZZ shields, RS contact seal, RZ low-drag seal, labyrinth	Contact seals protect better but eat speed; low-drag seals pass noise tests and keep efficiency
Grease	General-purpose, food-grade H1, high-temp polyurea, low-noise	Grease can change noise by whole dB bands; H1 is a must for food and cosmetics lines
Tolerance class	ISO P0–P5 or ABEC 1–5	Tighter classes help runout but raise scrap risk; I tighten only where it moves test results
MOQ and heat treatment	Small-lot through-hardening vs batch	Small MOQs speed trials; batch hardening lowers unit cost after DFM is frozen

How do I specify dimensions without over-constraining the supplier?

I lock only the fits that touch my stack-up: ID fit, OD fit, shoulder height, flange thickness.
I state runout and axial play as functional numbers, not blanket microns everywhere.
I give the housing and shaft tolerances so the bearing maker can balance the system.

Feature	Practical tolerance I request	Why it works
ID bore	g6 or tighter if needed for preload	Holds press fit without bruising the raceway
OD	P0 standard unless housing is plastic then relax slightly	Prevents creep while managing thermal growth
TIR runout	≤ 10–20 μm for small sizes	Good enough for quiet rotation without chasing tool marks
Axial play	Target 0–5 μm for preloaded assemblies	Gives stiffness without heat at speed

What materials and coatings do I reach for in tough environments?

440C / 420 stainless when wash-down or light corrosives are present.
Hybrid ceramic (Si3N4 balls) when speed and low heat trump everything else.
Full ceramic for strong acids, vacuum, or non-magnetic needs.
Coated steel rings with phosphate or DLC if I want steel toughness with extra wear resistance.

How do sealing and lubrication choices change speed, noise, and life?

Contact seals pass IP and splash tests but cut top RPM; I swap to low-drag seals for quiet consumer products.
Noise-tuned greases shave dB and pass subjective sound checks in quiet rooms.
H1 food-grade greases keep auditors happy; high-temp greases survive heat-soak tests without bleed.

How do I de-risk manufacturability and lead time before I commit?

I send a simple PDF with the few criticals highlighted and a STEP model for interference checks.
I ask for a proto route first and a production route second so cost and timeline are clear.
I request CPK on the one or two features that actually govern my pass-fail.

Stage	What I ask for	Why it saves time
Prototype	Small lot with shop-floor fixtures	Proves geometry without waiting for full tooling
Pilot	Pre-production with near-final heat treat and grease	De-risks noise and life data
Ramp	Final process control plan and PPAP if needed	Locks repeatability before purchase order scales

Where do hidden costs creep in and how do I avoid them?

Reworking housings to fit a standard part costs more than adding a flange to the bearing from the start.
Over-tight tolerances spike scrap; I tighten only where my test data demands it.
Wrong grease causes retests; I match grease to temperature, speed, and acoustic targets upfront.
Late seal changes ripple through noise and torque; I freeze the seal type before pilot runs.

What quick checklist helps me brief a supplier fast?

Duty cycle and top RPM
Radial and axial loads with safety factor
Ambient and peak temperature, chemicals, or wash-down details
Target noise or torque window and test method
Critical fits and allowed axial play
Expected MOQ, target price band, desired lead time

Why did I choose a non-standard path in these short scenarios?

Consumer appliance — A low-drag RZ seal and noise-tuned grease made the motor sound “premium” without raising BOM elsewhere.
Food packaging line — Stainless rings, H1 grease, and a flange avoided a costly housing revision and passed audit.
Compact robot joint — Thin-section profile with factory preload delivered stiffness without bulky shims.

How can we talk next steps?

If your drawing looks “almost right” but the last millimeter won’t cooperate, a focused non-standard tweak can rescue the schedule without blowing up cost. Share your key constraints and I will map them to a buildable, testable bearing spec and line up a pilot plan. If you want samples, pricing, or a fast DFM review, please contact us and leave an inquiry with your load, speed, environment, and target lead time. Let’s solve the fit, the noise, and the life in one pass—reach out and contact us today.
