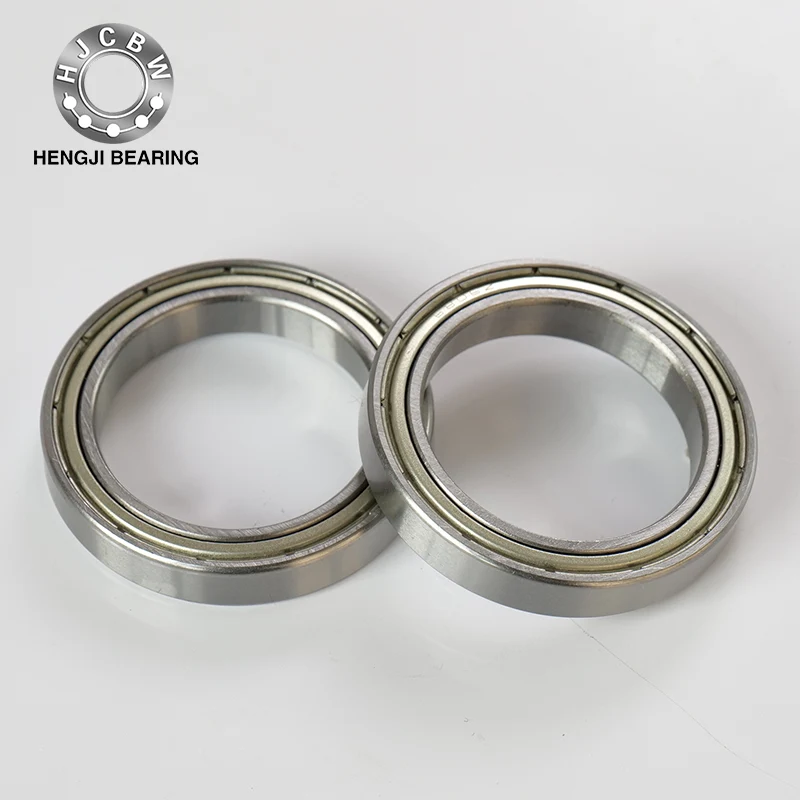

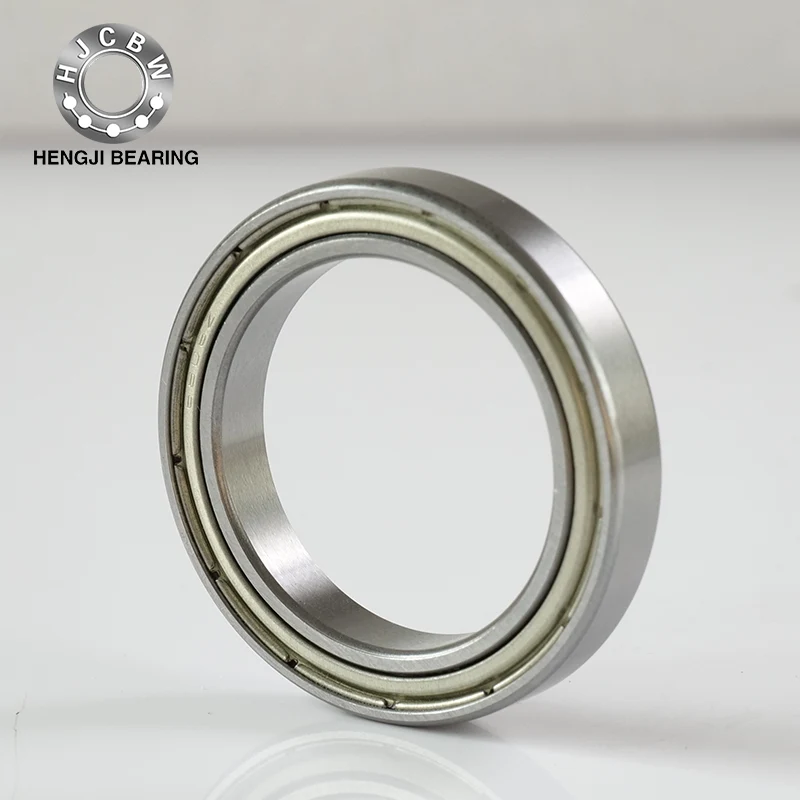

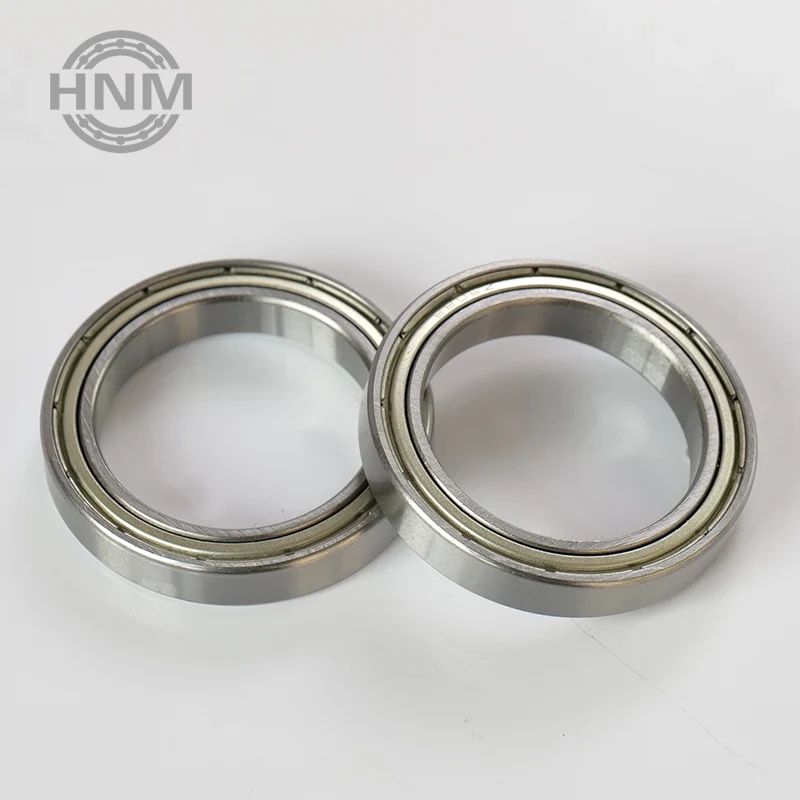

6806Z Thin Section Bearings

The 6806Z thin section bearings adopt a thin-walled compact design. Their lightweight and cost-effective characteristics make them widely used in industrial equipment, transmission systems, home appliances and other fields. They can stably withstand radial loads and slight axial loads and are suitable for dry and low-pollution environments.

Parameter

Core Features

Single-sided dust protection (Z type):

The metal dust cover (galvanized steel plate) is fixed to the outer ring to effectively block the intrusion of large particles of dust and debris and extend the lubrication cycle.

Note: Not suitable for high-pressure water washing or high humidity environments.

Standard material: high carbon chromium steel (GCr15), surface hardness HRC 58-62, excellent wear resistance.

Installation and Maintenance Guide

Installation Precautions:

Cleaning and Alignment: Remove burrs on the surface of the shaft and the seat hole before installation to ensure that the coaxiality is ≤0.05mm and avoid eccentric loading.

Pressing method: Use a special sleeve to apply pressure evenly. Do not knock on the side of the dust cover to prevent deformation or seal failure.

Lubrication Management:

General lithium grease (NLGI 2) is pre-filled at the factory and relubricated every 1-2 years under normal working conditions.

Replace high-temperature grease (such as polyurea grease) in high temperature (>80°C) or high humidity environment.

Maintenance points

Regular inspection:

Check whether the dust cover is rusted or loose every 6 months, and clean the accumulated dirt on the surface.

Monitor the operating temperature. Abnormal temperature rise (>75°C) may indicate insufficient lubrication or overload.

Replacement standard:

If the bearing clearance increases to more than 2 times the initial value, or obvious vibration or abnormal response occurs, it should be replaced immediately.

Advantages

1. Product advantages: efficient dust prevention, maintenance-free, wide range of use, ultra-high speed and high temperature resistance, high speed and extremely high speed operation

2. Material: We use bearing steel, also known as (chrome steel), steel model: GCr15, which is a special steel for international bearing industry standards.

3. Advantages of bearing steel material: effectively improve the torque performance of bearings, enhance stability, high hardness, low noise, and long life

4. Bearings are widely used in mechanical equipment, which can reduce the friction of mechanical parts, reduce energy consumption, and improve work efficiency and working life

5. We can provide customized services

6. Application range: washing machines, air conditioners, massagers, laser printers, banknote counters, car wipers, condensing fans, power tools, vacuum cleaners, precision instruments, toy models

Bearing preservation

Bearings are precise parts. In order to maintain the accuracy and reliability of bearings, they must be handled carefully during operation, especially to keep the bearings clean and avoid strong collisions and rust.

The 6806Z thin section bearings produced by the company are all attached with rust inhibitors on the surface and should be stored at room temperature with a relative humidity below 60%.
