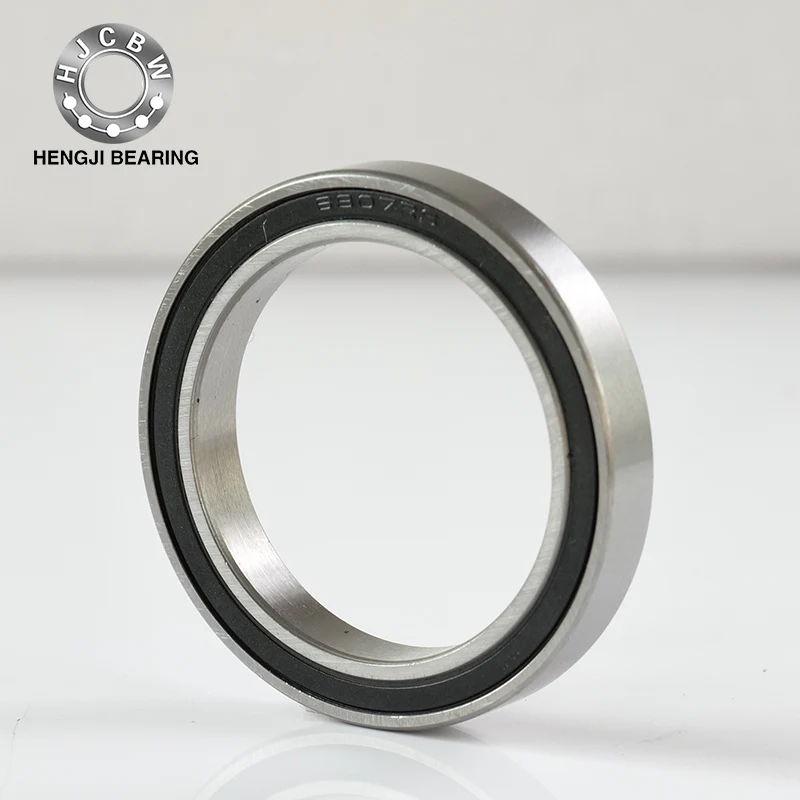

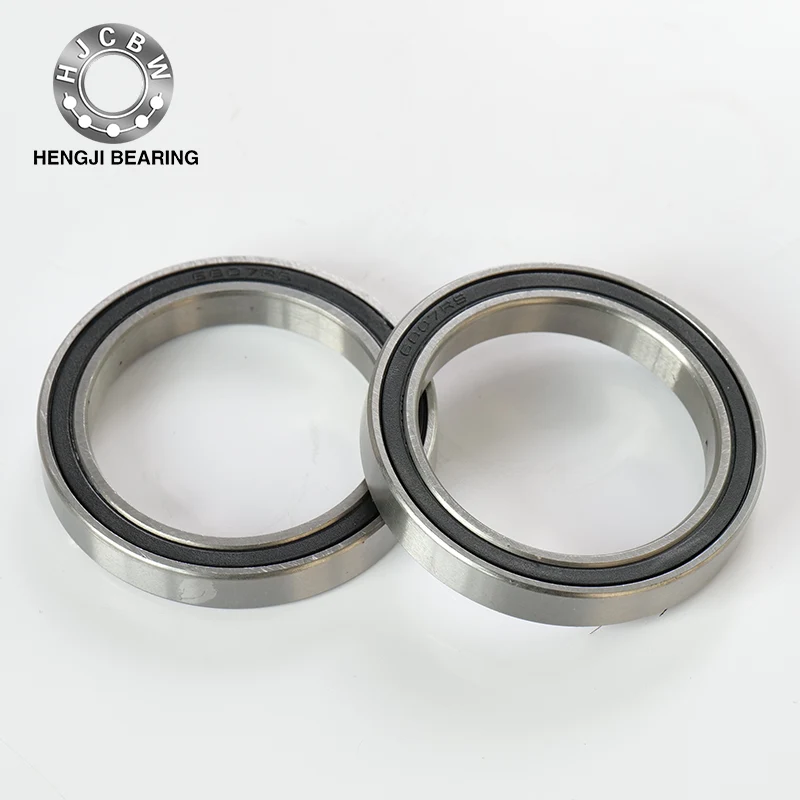

6807RS Thin Section Bearings

6807RS thin section bearings use double-sided contact rubber seals (RS type) and thin-wall design, which are optimized for medium and high loads, dusty or humid environments. Its high sealing performance, medium load capacity and compact structure make it widely used in industrial transmission, agricultural machinery, electric vehicles and other fields, especially suitable for scenes that require dust and water resistance and limited space.

Parameter

Core features

Single-sided rubber seal (RS type):

Contact rubber seal ring effectively blocks the intrusion of dust, water mist and fine particles.

Applicable environment: dusty workshops, outdoor equipment, food processing and other humid or slightly polluted scenes.

Thin-walled lightweight design:

Outer diameter 47mm, width 7mm, optimized wall thickness, suitable for compact installation space (such as motor end cover, reducer cavity).

The weight is about 15% lighter than that of standard bearings, reducing the inertial resistance of the equipment.

Typical application areas

Industrial transmission system:

Gear motor output shaft, conveyor sprocket support, hydraulic pump transmission parts.

Case: Robot arm joints of automated production lines require sealing, dustproof and low maintenance.

Electric vehicles:

Electric scooter wheel hub motors, low-speed electric vehicle steering mechanisms, adapted to outdoor dusty environments.

General equipment:

Fan impellers, printing press rollers, medium loads and long-life sealing scenarios.

Selection suggestions

Prioritize 6807RS: balance sealing and cost-effectiveness, suitable for most industrial and agricultural scenarios.

Choose 6807-2RS: food processing, pharmaceutical equipment and other environments that require high-pressure cleaning.

Choose 6807ZZ: high-speed, low-pollution scenarios (such as precision instrument spindles).

Why choose us?

1. Product advantages: dustproof, waterproof, oil-proof, wear-resistant, good heat resistance, can also be used in harsh environments

2. Material: We use bearing steel, also known as (chrome steel), steel model: GCr15, which is an international standard special steel for bearings.

3. Advantages of bearing steel: effectively improve the torque performance of bearings, enhance stability, high hardness, low noise, long life

4. Bearings are widely used in mechanical equipment, which can reduce the friction of mechanical parts, reduce energy consumption, improve work efficiency and working life

5. We can provide customized services

6. Application range: washing machines, air conditioners, massagers, laser printers, banknote counters, car wipers, condensing fans, power tools, vacuum cleaners, precision instruments, toy models
