How Do Thin Section Bearings Improve Precision and Space Efficiency in Modern Machinery?

Article Summary:
Thin Section Bearings are engineered to deliver high precision, reduced weight, and compact design in advanced mechanical systems. This article explains how they work, why they outperform traditional bearings in specific applications, and how they address key challenges such as limited installation space, high energy consumption, and precision instability. It also provides technical insights, selection guidance, and practical applications for industries requiring optimized performance.

Table of Contents

• 1. Article Outline
• 2. What Are Thin Section Bearings
• 3. How Thin Section Bearings Work
• 4. Key Features and Advantages
• 5. Technical Parameters
• 6. Solving Common Customer Challenges
• 7. How to Choose the Right Bearing
• 8. Typical Applications
• 9. Frequently Asked Questions

1. Article Outline

• Definition and structural characteristics
• Operating principles and design logic
• Performance advantages over standard bearings
• Technical specifications and comparison
• Selection strategy and application scenarios

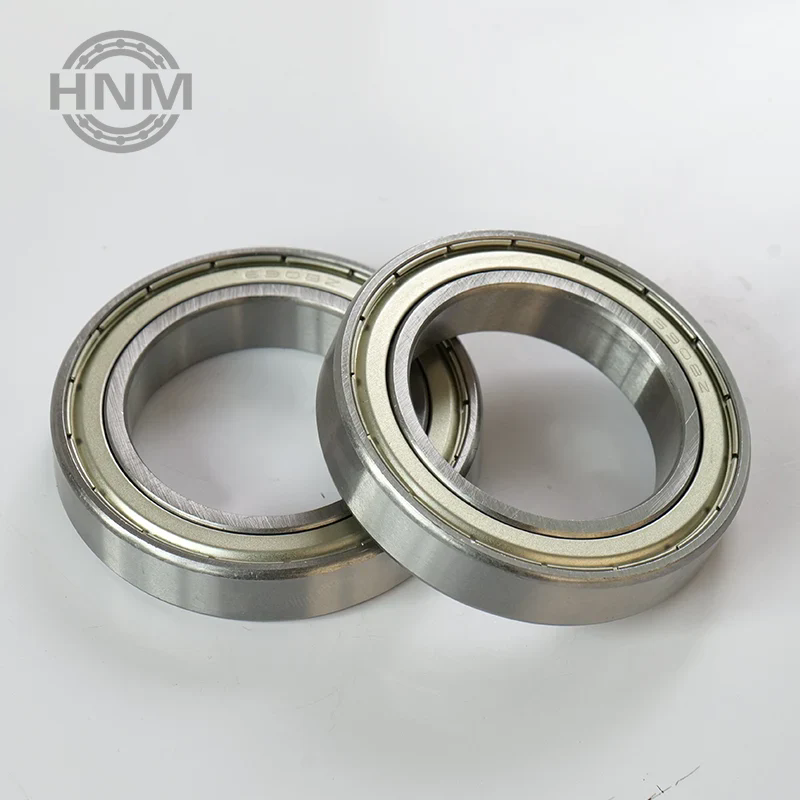

2. What Are Thin Section Bearings

Thin Section Bearings are specialized rolling bearings characterized by a constant cross-section regardless of bore size. This unique design allows engineers to maintain compact dimensions while scaling the diameter of the bearing.

Unlike conventional bearings, which increase in thickness as diameter grows, thin section bearings maintain a slim profile, making them ideal for applications where space and weight are critical constraints.

Manufacturers such as Hengji Bearings provide a wide range of customized solutions, including radial contact, angular contact, and four-point contact configurations to meet diverse engineering needs.

3. How Thin Section Bearings Work

The working principle of thin section bearings is similar to standard rolling bearings but optimized for precision and compactness:

• Rolling Motion: Balls or rollers reduce friction between rotating components
• Load Distribution: Contact geometry ensures even load transfer
• Minimal Cross-section: Reduces inertia and improves responsiveness

Because of their thin rings and precise geometry, these bearings can achieve high rotational accuracy and low friction, making them suitable for sensitive equipment.

Additionally, their design allows consistent performance across different sizes without increasing installation space.

4. Key Features and Advantages

Thin section bearings offer several significant advantages:

• Space Saving: Compact structure fits into tight mechanical assemblies
• Lightweight Design: Reduces overall system weight and energy consumption :
• High Precision: Tight tolerances enable accurate motion control
• Low Friction: Improves efficiency and reduces heat generation
• Design Flexibility: Enables innovative compact machine layouts
• High Speed Capability: Suitable for high-speed rotational systems

These benefits make them indispensable in advanced engineering fields where performance and compactness are equally critical.

5. Technical Parameters

Specifications may vary depending on application requirements and customization.

6. Solving Common Customer Challenges

1. Limited Installation Space
Thin section bearings are designed specifically for compact environments, enabling integration into tight assemblies without redesigning the entire system.

2. Excessive System Weight
Their lightweight construction significantly reduces total equipment mass, improving energy efficiency and performance.

3. Precision Instability
High manufacturing accuracy ensures stable motion and minimal vibration, even in sensitive equipment.

4. High Energy Consumption
Low friction characteristics reduce power loss and heat generation.

5. Design Constraints
Engineers gain more flexibility in designing compact and innovative systems due to consistent cross-section geometry.

7. How to Choose the Right Bearing

When selecting thin section bearings, consider the following factors:

1. Load Requirements

• Light to moderate loads: Thin section bearings are ideal
• Heavy loads: Consider reinforced designs

2. Contact Type

• Radial contact: For radial loads
• Angular contact: For combined loads
• Four-point contact: For moment loads

3. Precision Needs

• High-precision machinery requires tighter tolerance grades

4. Material Selection

• Steel: Standard applications
• Stainless steel: Corrosion resistance
• Ceramic: High-speed and extreme environments

5. Supplier Capability

Working with experienced manufacturers like Hengji Bearings ensures product reliability and customization support.

8. Typical Applications

• Robotics and automation systems
• Medical imaging equipment
• Aerospace and satellite systems
• Semiconductor manufacturing equipment
• Precision instruments and optical devices

These industries rely heavily on thin section bearings for their combination of compactness, precision, and efficiency.

9. Frequently Asked Questions

Q1: What makes thin section bearings different from standard bearings?
A: Their constant cross-section and compact design allow for space and weight savings while maintaining high precision.

Q2: Are thin section bearings suitable for heavy loads?
A: They are optimized for light to moderate loads; heavy-duty applications may require alternative designs.

Q3: Can they operate at high speeds?
A: Yes, their low friction and lightweight structure support high-speed performance.

Q4: Do they require special maintenance?
A: Regular lubrication and proper installation are essential to ensure optimal performance.

Q5: Why are they more expensive than standard bearings?
A: Higher precision manufacturing and advanced materials increase initial cost but reduce overall system cost.

Conclusion

Thin Section Bearings provide a powerful solution for modern engineering challenges, combining compact design, high precision, and improved efficiency. Their ability to reduce weight, save space, and enhance system performance makes them indispensable in advanced industries.

Choosing a reliable partner such as Hengji Bearings ensures access to high-quality products, technical expertise, and customized solutions tailored to your application.

If you are looking to optimize your machinery with precision and efficiency, contact us today to receive expert consultation, customized solutions, and competitive pricing.
