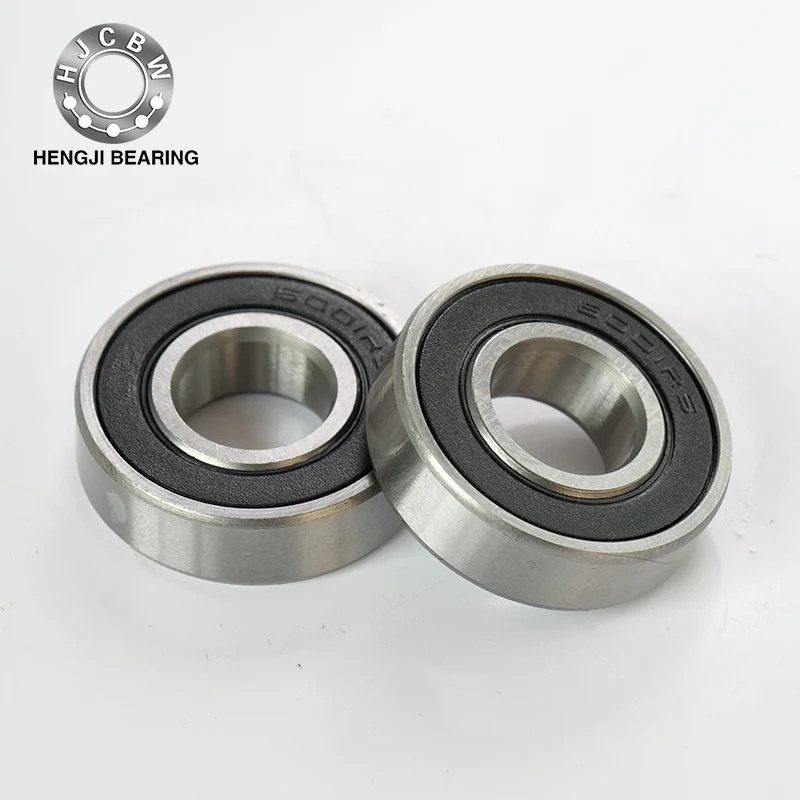

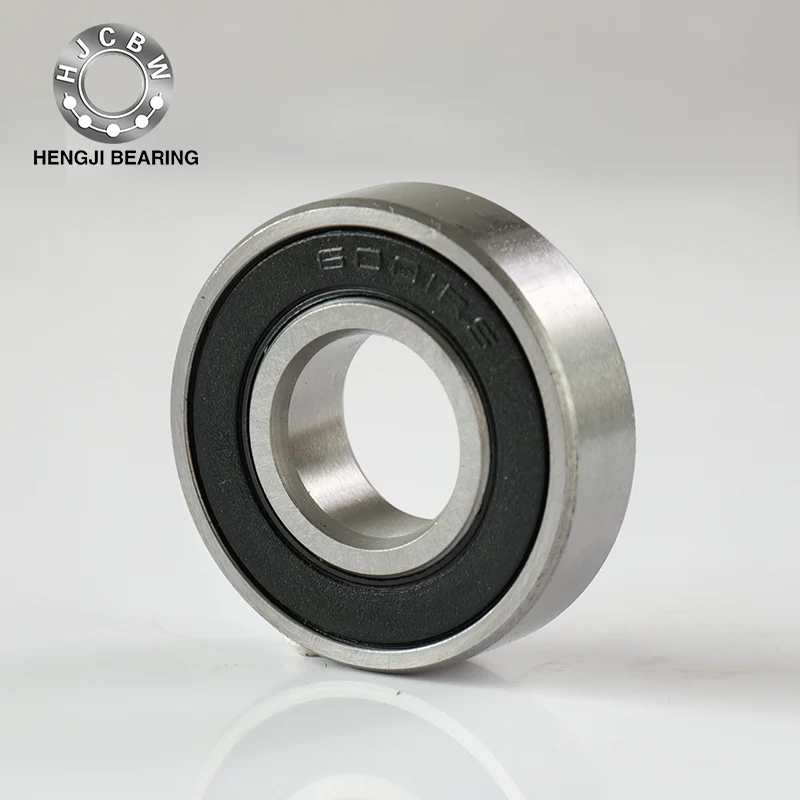

6001RS Deep Groove Ball Bearings with a Snap Ring Groove

The 6001RS Deep Groove Ball Bearings with a Snap Ring Groove are single‑row, radial bearings designed to handle both radial and moderate axial loads with low friction and high rotational speed capability. Deep groove ball bearings are the most widely used bearing type in industrial and precision machinery due to their simplicity, durability, and adaptability.

Product Parameter

Design Advantages

Deep Groove Geometry: Classic deep raceways provide excellent radial and moderate axial load capacity in both directions.

Snap Ring Groove: Built‑in groove facilitates secure placement and simplifies installation in housings with snap rings.

Sealed Construction (RS): Contact rubber seal retains lubrication and reduces contamination ingress for longer operating life.

Low Noise & Smooth Operation: Precision raceway finishing improves rotational smoothness and reduces vibration.

Compact Dimensions: Standardized 6001 series size (12 × 28 × 8 mm) for broad interchangeability with OEM bearings.

Performance & Reliability

High Speed Capability: Suitable for high RPM rotary applications with minimal heat build‑up.

Durable Materials: Bearing steel with optimized heat treatment delivers superior wear resistance and fatigue life.

Low Friction: Deep groove design reduces torque and energy loss in operation.

Wide Application Range: Compatible with electric motors, gearboxes, pumps, automotive assemblies, machinery systems, and automation equipment.

Applications:

The 6001RS Deep Groove Ball Bearings with a Snap Ring Groove are frequently selected for:

Precision electric motors and machine tools

Industrial fans and blowers

Agricultural and construction machinery

Conveyor systems and automation

Household appliances and power tools

Robotics and motion control systems

Their robust design and built‑in axial positioning feature make them suitable for both stationary and dynamic load environments.

Why choose us?

We manufacture and supply 6001RS Deep Groove Ball Bearings with a Snap Ring Groove with strict quality control and testing. Our bearings conform to international standards, ensuring:

Material traceability and certification

Dimensional and tolerance accuracy

Consistent lubrication and sealing integrity

Reliable performance in industrial settings

Whether you’re designing new equipment or replacing existing components, our products are engineered for precision, durability, and dependable service life.

Bearing preservation

Bearings are precise parts. In order to maintain the accuracy and reliability of bearings, they must be handled carefully during operation, especially to keep the bearings clean and avoid strong collisions and rust.

The 6001RS Deep Groove Ball Bearings with a Snap Ring Groove produced by the company are all attached with rust inhibitors on the surface and should be stored at room temperature with a relative humidity below 60%.

FAQ

1.What is a 6001RS Deep Groove Ball Bearing with a Snap Ring Groove?

A 6001RS Deep Groove Ball Bearing with a Snap Ring Groove is a single-row radial bearing designed with deep grooves for handling radial and moderate axial loads. The integrated snap ring groove on the outer ring allows secure positioning in housings, simplifying installation and improving operational stability.

2.What are the main features of the 6001RS bearing?

Key features include:

Sealed design (RS) to prevent contamination and retain lubrication.

Snap ring groove for secure axial positioning.

High precision for smooth rotation and low noise.

Durable bearing steel construction for long service life.

Standard 6001 series size (12 × 28 × 8 mm) for broad compatibility.

3.What applications are suitable for this bearing?

This bearing is widely used in:

Electric motors and machine tools

Automotive and gear assemblies

Industrial fans, pumps, and conveyors

Robotics and automation equipment

Household appliances and power tools

Its combination of compact size, durability, and axial retention makes it versatile for both industrial and consumer applications.

4.How do I install a 6001RS bearing with a snap ring groove?

Installation tips:

Ensure the housing and shaft are clean and free of debris.

Align the bearing groove with the snap ring in the housing.

Press the bearing gently into position without excessive force.

Verify that the snap ring securely holds the bearing in place to prevent axial movement.

Proper installation ensures longevity and smooth operation.

5.What are the technical specifications of this bearing?

Typical specifications:

Bore diameter (d): 12 mm

Outer diameter (D): 28 mm

Width (B): 8 mm

Sealing: RS rubber contact seal

Material: High-carbon chrome steel

Temperature range: -30 °C to +120 °C

Precision grade: ABEC‑1 / ISO P0

6.How can I maintain and extend the life of this bearing?

To maximize service life:

Keep bearings clean and free of dust or debris.

Avoid overloading or misalignment during operation.

Check lubrication regularly; sealed RS bearings are pre-lubricated but may require additional grease in high-demand applications.

Inspect periodically for wear or noise and replace if necessary.
