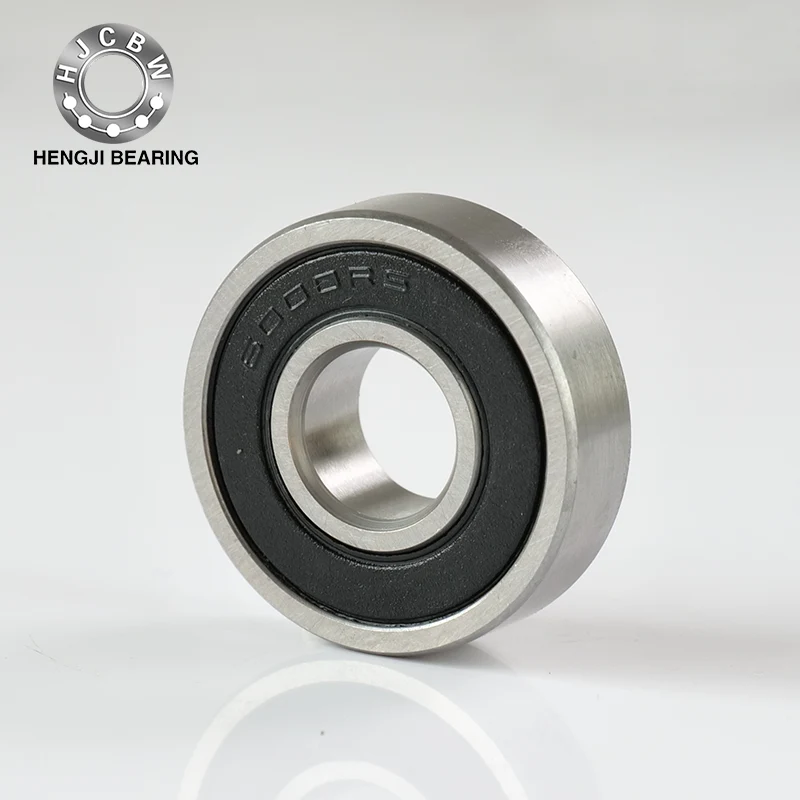

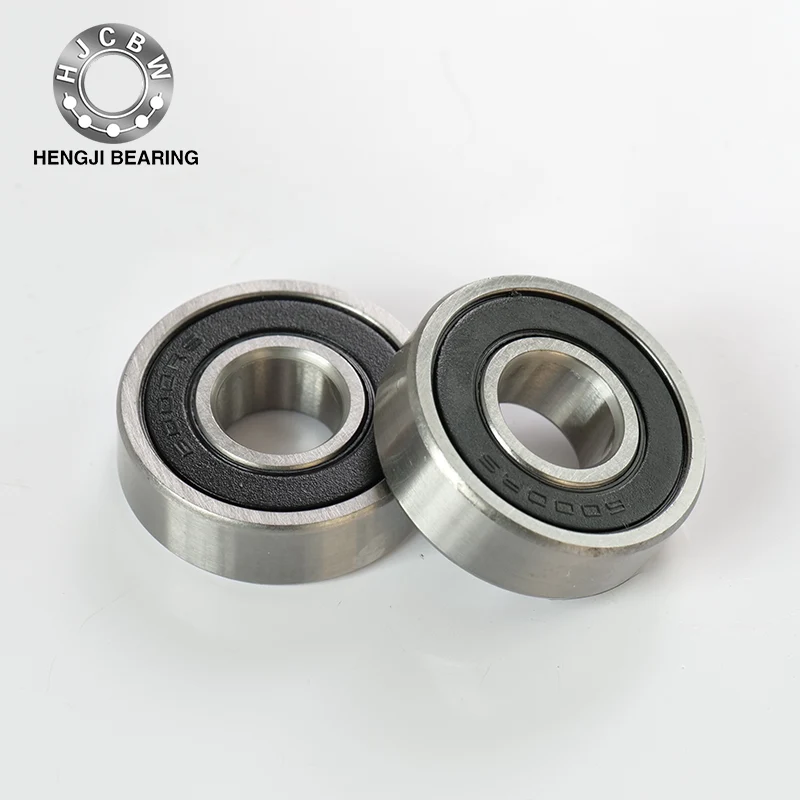

6000RS Deep Groove Ball Bearings with a Snap Ring Groove

The 6000RS Deep Groove Ball Bearings with a Snap Ring Groove are precision-engineered bearings designed for durability, low friction, and long-lasting performance. Featuring a rubber seal (RS) and a snap ring groove (NR), these bearings ensure reliable axial positioning and smooth rotation in various mechanical systems.

Material and Construction

Manufactured from high-quality chrome steel (GCr15), with optional stainless steel for corrosion resistance, these bearings are built to withstand demanding industrial and automotive applications. The robust construction reduces wear and extends service life.

Product Parameter

Applications:

6000RS Deep Groove Ball Bearings with a Snap Ring Groove are widely used in automobiles, textile machinery, motors, household appliances, fitness equipment, manipulators, range hoods, etc.

Advantages:

1. We can provide customized services

2. Product advantages: dustproof, waterproof, oil-proof, wear-resistant, heat-resistant, can be used in harsh environments

3. Advantages of bearing steel: effectively improve the torque performance of bearings, enhance stability, high hardness, low noise, long life

4. Bearings are widely used in mechanical equipment, it can reduce the friction of mechanical parts, reduce energy consumption, improve work efficiency and working life

5. Material: We use bearing steel material, also known as (chrome steel), steel model: GCr15, which is a special steel for international bearing industry standards.

Why Choose Cixi Hengji Bearings?

By choosing 6000RS Deep Groove Ball Bearings with a Snap Ring Groove from Cixi Hengji Bearing Co., Ltd., customers gain:

Durable and efficient bearings for long-term use

Simplified assembly thanks to the snap ring groove

Reliable performance in industrial and automotive projects

High-quality manufacturing and global sourcing support

Preparation before installation

6000RS Deep Groove Ball Bearings with a Snap Ring Groove should be installed in a clean, dry place, especially for small bearings, because any contamination particles will have a great impact on the performance of the bearing.

Before installation, all installation tools, shafts, bearing seats and corresponding parts must be clean, and any burrs and debris must be removed as much as possible. At the same time, the roughness, size and design accuracy of the shaft and bearing seat should be checked to ensure that they are within the allowable tolerance range.

Before the installation preparation work is completed, do not unpack the bearing to avoid contamination. Under normal circumstances/bearings with grease lubricant do not need to remove the rust inhibitor during installation. However, for oil lubrication or when grease and rust inhibitor will reduce the lubrication effect, the rust inhibitor should be washed off with benzene or petroleum solvent and dried before use. If the packaging is damaged or the bearing is contaminated, it should be cleaned and dried before use. Bearings with dust covers and seals cannot be cleaned.

FAQ

1. What does “RS” mean in 6000RS bearing?

“RS” indicates that the bearing is equipped with a rubber seal on one side. The rubber seal protects the internal raceways and balls from dust, moisture, and contaminants while retaining lubrication. For applications requiring sealing on both sides, the model is typically designated as 6000-2RS.

2. What is the purpose of the snap ring groove (NR design)?

The snap ring groove (commonly marked as “NR”) is a machined groove on the outer ring designed to accommodate a retaining ring (circlip).

Its main function is:

To simplify axial positioning in housing

To reduce installation time

To eliminate the need for additional locking components

In many motor and gearbox applications, the NR version improves assembly efficiency and stability.

3. What are the standard dimensions of 6000RS bearing?

The standard dimensions for 6000RS deep groove ball bearing are:

Inner diameter (ID): 10 mm

Outer diameter (OD): 26 mm

Width: 8 mm

Tolerance classes and clearance options (C0, C3, etc.) can be supplied according to application requirements.

4. What materials are commonly used for 6000RS bearings?

6000RS bearings are typically manufactured from:

Chrome steel (GCr15 / 52100 bearing steel) – most common, high hardness and wear resistance

Stainless steel – for corrosion-resistant environments

Hybrid ceramic (optional) – for high-speed or low-friction applications

Material selection depends on load, speed, temperature, and environmental conditions.

5. What applications are 6000RS NR bearings commonly used in?

This bearing type is widely used in:

Electric motors

Small gearboxes

Pumps

Agricultural machinery

Automotive auxiliary systems

Industrial equipment

The snap ring groove design is especially suitable for applications requiring precise axial location within the housing.

6. Can 6000RS bearings be customized?

Yes, customization options typically include:

Clearance class (C2, C3, C4)

Precision grade (P0, P6, P5)

Lubrication type and grease brand

Seal material (NBR, FKM for high temperature)

Laser marking and OEM branding

Packaging customization

MOQ and lead time depend on quantity and specification requirements.
