608Z Single Row Deep Groove Ball Bearings with Filling Slots
  • 608Z Single Row Deep Groove Ball Bearings with Filling Slots608Z Single Row Deep Groove Ball Bearings with Filling Slots
  • 608Z Single Row Deep Groove Ball Bearings with Filling Slots608Z Single Row Deep Groove Ball Bearings with Filling Slots

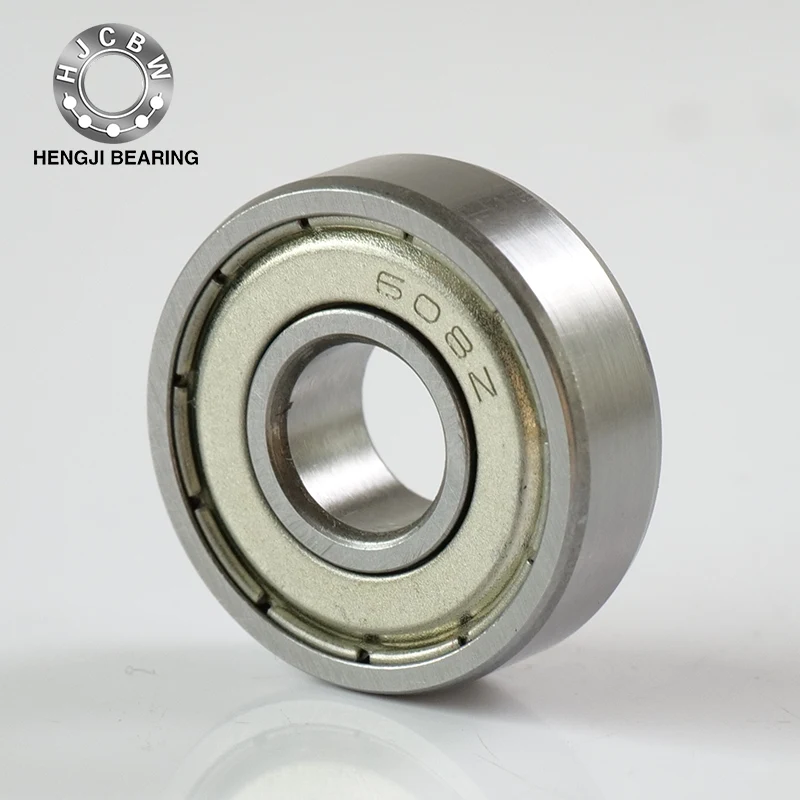

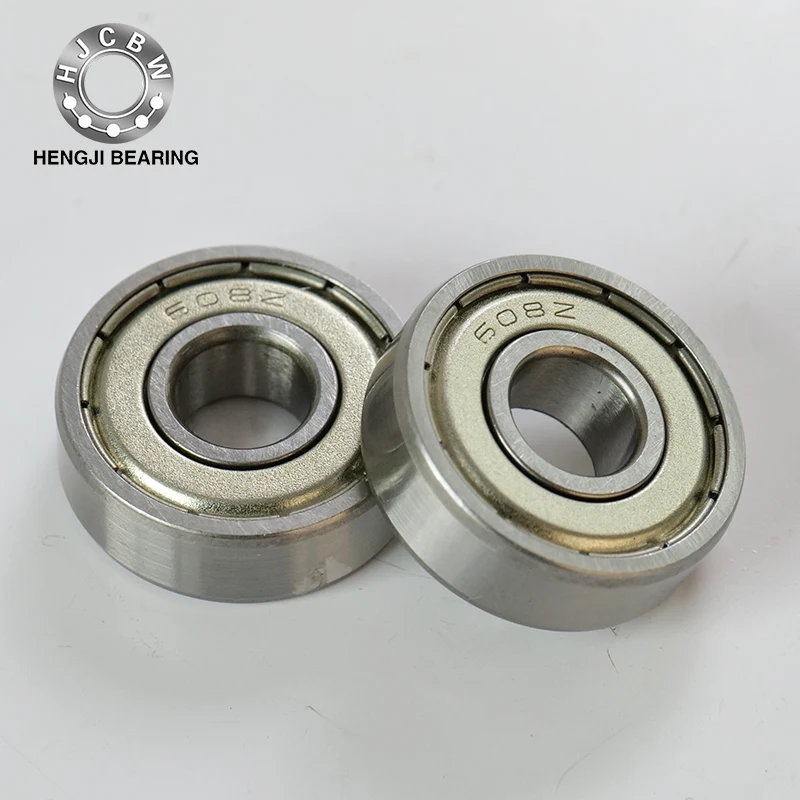

608Z Single Row Deep Groove Ball Bearings with Filling Slots

608Z Single Row Deep Groove Ball Bearings with Filling Slots are provided by China manufacturer Hengji Bearings, which have the characteristics of low friction resistance and high speed. The high-quality single row deep groove ball bearings with filling grooves provided by us are suitable for mechanical equipment that need to run at high speed.

The high quality 608Z Single Row Deep Groove Ball Bearings with Filling Slots with is provided by Hengji Bearing, a China manufacturer supplier and exporter. The high-quality Single Row Deep Groove Ball Bearings with Filling Slots provided by us are durable and efficient, ensuring long-term performance in various industries.


Product Parameter

Bearing No 608Z
Outer Diameter
Inner Diameter(mm inch)
8 0.3150
Outer Diameter(mm inch)
22 0.8661
Width(B)
Open(mm inch)
7 0.2756
Closed(mm inch)
7 0.2756
Chamfer(mm inch)
0.3 0.012
Rated Load
Dynamic (Cr N)
3290
Static(Cor N)
1360
Weight(kg)
0.0129


Advantages:

1. Product advantages: efficient dust prevention, maintenance-free, wide range of use, ultra-high speed and high temperature resistance, high speed and extremely high speed operation.

2. Material: We use bearing steel, also known as (chrome steel), steel model: GCr15, which is a special steel material for international bearing industry standards.

3. Advantages of bearing steel material: effectively improve the torque performance of bearings, enhance stability, high hardness, low noise, and long life.

4. Bearings are widely used in mechanical equipment, which can reduce the friction of mechanical parts, reduce energy consumption, and improve work efficiency and working life.


Applications:

608Z Single Row Deep Groove Ball Bearings with Filling Slots are widely used in automobiles, textile machinery, motors, household appliances, fitness equipment, manipulators, range hoods, etc.


Bearing preservation

Bearings are precise parts. In order to maintain the accuracy and reliability of bearings, they must be handled carefully during operation, especially to keep the bearings clean and avoid strong collisions and rust.

The 608Z Single Row Deep Groove Ball Bearings with Filling Slots produced by the company are all attached with rust inhibitors on the surface and should be stored at room temperature with a relative humidity below 60%.


Maintenance and maintenance suggestions:

Regular inspection: Check the operation of the bearing regularly to ensure that there is no abnormal noise or vibration.

Lubrication: Ensure that the bearing is properly lubricated to avoid damage caused by dry friction.

Cleanliness: Keep the bearing and its surroundings clean to prevent impurities from entering the bearing.


Hengji Bearing is your reliable supplier!

1. We are the leading bearing manufacturer in China with more than 20 years of experience. Your order will be properly handled.

2. 100% guaranteed quality and satisfaction

3. Provide professional customization services

4. We have a responsible after-sales service team

5. Fast delivery time and transportation.
