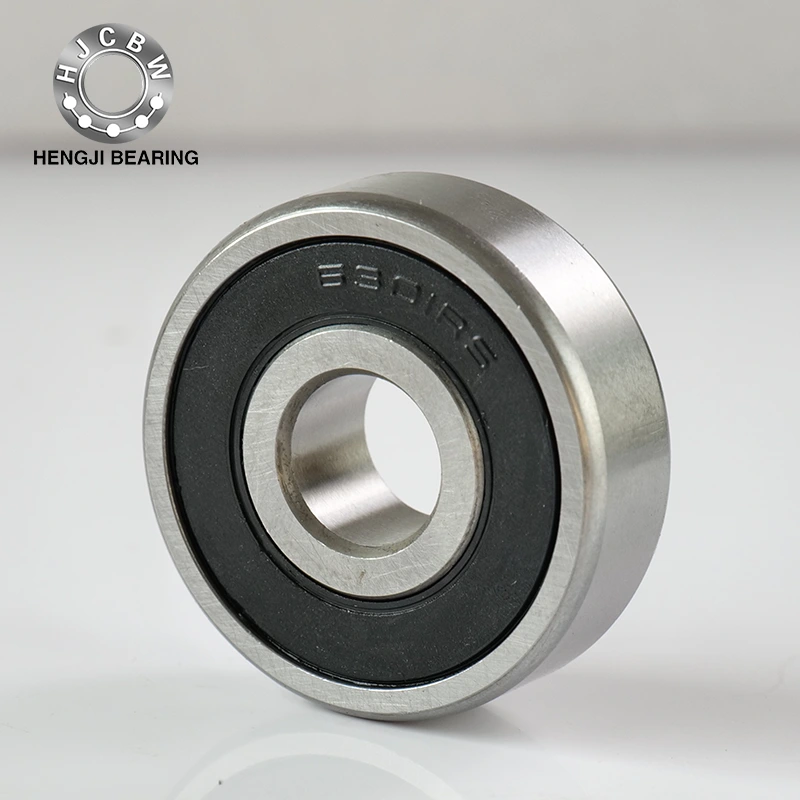

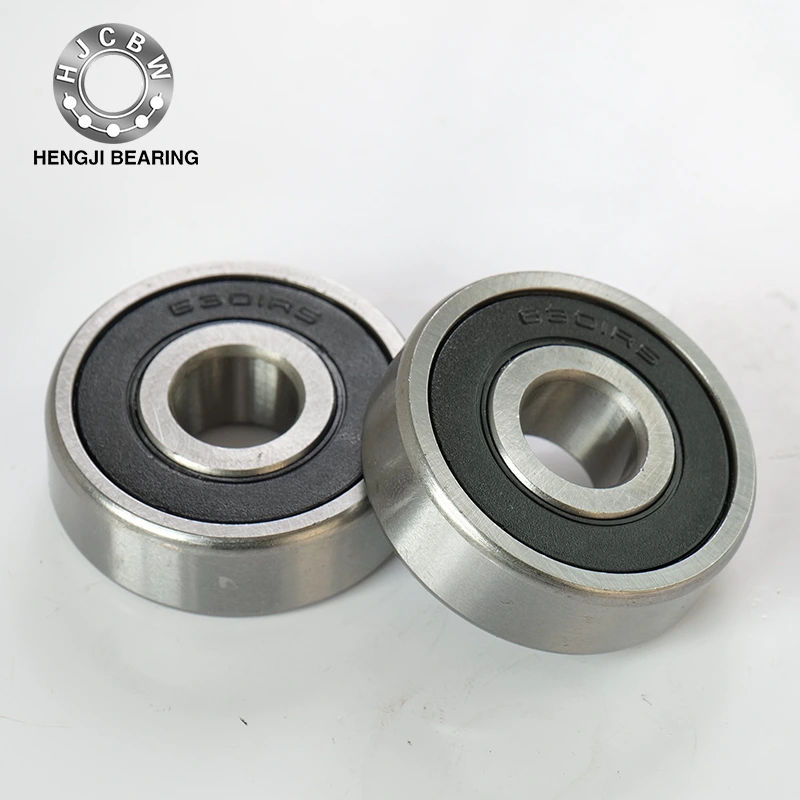

6301RS Deep Groove Ball Bearings with Seal

6301RS Deep Groove Ball Bearings with Seal is a high-performance and high-reliability bearing suitable for a variety of industrial equipment and household appliances, which can effectively improve the operating efficiency and service life of the equipment. The retaining ring groove design is convenient for installing retaining rings to prevent axial displacement of the bearing, and is suitable for occasions where axial fixation is required.

Parameters

Material:

Bearing ring and steel ball: high carbon chromium steel (GCr15)

Seal ring: oil-resistant rubber (NBR)

Cage: usually a steel plate stamping cage

Features:

1. Sealing performance:

RS seal ring effectively prevents dust, moisture and other contaminants from entering the bearing and prolongs its service life.

2. Retaining ring groove design:

The retaining ring groove is convenient for installing retaining rings to ensure the fixation of the bearing in the axial direction, and is suitable for high-speed or high-vibration equipment.

3. High load capacity:

The deep groove ball bearing design can bear both radial and axial loads, suitable for a variety of working conditions.

4. Low friction:

Precision machining and high-quality grease reduce friction, improve operating efficiency and reduce energy consumption.

5. Durability:

High carbon chromium steel material provides excellent wear resistance and fatigue resistance, suitable for long-term operation.

Application areas:

Motors: household appliance motors, industrial motors, etc.

Automotive parts: gearboxes, hubs, pulleys, etc.

Household appliances: washing machines, fans, vacuum cleaners, etc.

Industrial equipment: pumps, gearboxes, conveyor belts, etc.

Advantages:

Extend equipment life: Sealed design and high-quality materials reduce wear and extend the service life of bearings and equipment.

Reduce maintenance requirements: The seals effectively prevent contaminants from entering and reduce maintenance frequency.

Improve operating efficiency: The low friction design reduces energy loss and improves equipment operating efficiency.

Installation and maintenance recommendations:

1. Pre-installation inspection:

Ensure that the size and surface finish of the shaft and seat hole meet the requirements.

2. Correct installation:

Use appropriate tools for installation and avoid direct knocking on the bearing.

3. Lubrication:

The bearings are pre-installed with grease when they leave the factory, but they may need to be relubricated under high temperature or high speed conditions.

4. Regular inspection:

Regularly check the seals and lubrication status, and replace damaged seals or relubricate grease in time.

Why choose us?

1. Product advantages: dustproof, waterproof, oil-proof, wear-resistant, good heat resistance, can also be used in harsh environments

2. Material: Ours is made of bearing steel, also known as (chrome steel), steel model: GCr15, which is a special steel for international bearing industry standards.

3. Advantages of bearing steel: effectively improve the torque performance of bearings, enhance stability, high hardness, low noise, long life

4. Bearings are widely used in mechanical equipment, which can reduce the friction of mechanical parts, reduce energy consumption, improve work efficiency and working life

5. We can provide customized services

6. Application range: washing machines, air conditioners, massagers, laser printers, banknote counters, car wipers, condensing fans, power tools, vacuum cleaners, precision instruments, toy models
